操作系统实验五文件系统

实验五已验收，不建议直接用我的代码（看看就好），不然你的分数可能会不太好

提示

系统验收的时候老师指出了很大的问题，就是这个系统真实情况下是在磁盘上进行操作的，我的系统就是在内存中跑的

命令简要

• cd dirname 【更改目录，注意dirname只能是ls命令下的那些文件名】
• ls 【打印出当前目录下的文件】
• mkdir dirname 【创建目录】
• rmdir dirname 【删除目录】
• create filename 【 创建文件】
• rm filename 【删除文件】
• open filename 【 打开文件,打开后进入该文件目录，可输入read ,write, close命令】
• read 【打印文件内容】
• write 【输入命令后，选择写入模式，0截断写，1覆盖写，2追加写】
• close 【关闭文件】
• exit 【退出系统】

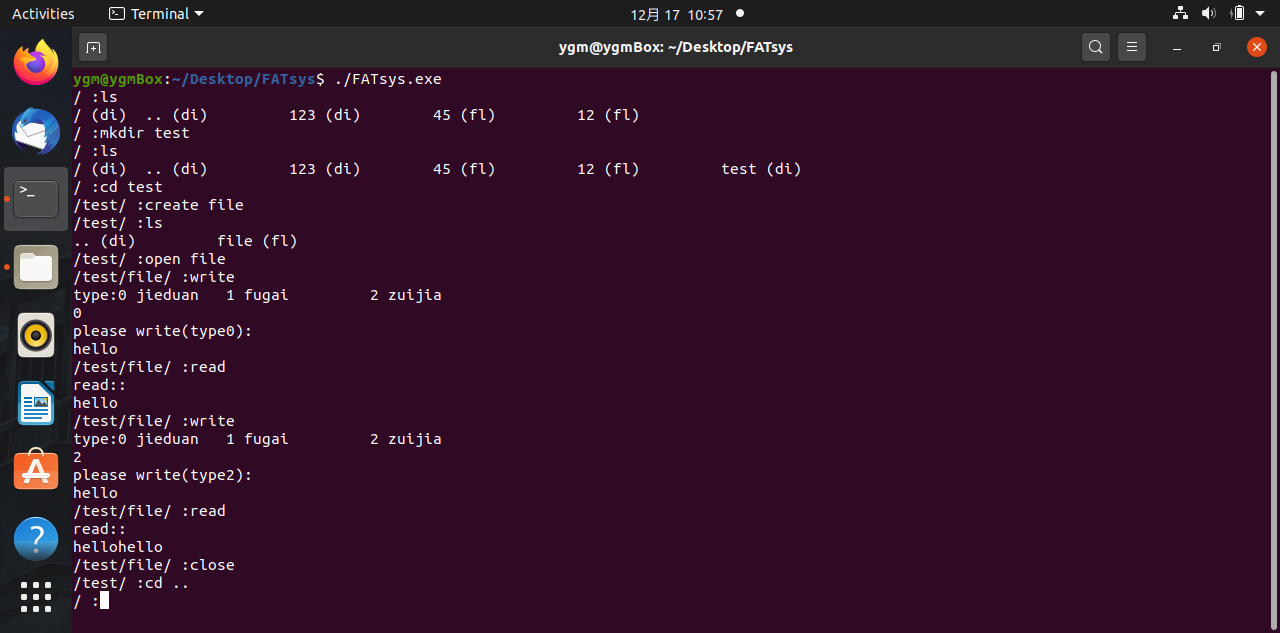

执行截图

代码附录

#include<stdio.h>
#include<stdlib.h>
#include<string.h>
#include<time.h>

#define blockSize 1024 //一个磁盘块大小
#define Size 1024000 //磁盘总大小
#define End 65535 //FAT表中盘块结束标志
#define Free 0 //FAT表中空闲块标志
#define maxOpenfile 10 //用户文件表最大长度

typedef struct FCB{
    char fileName[8];
    char exName[3]; //扩展名，有"dr"和"fl"两种
    unsigned char attribute; //0代表目录，1代表文件
    unsigned short time;
    unsigned short date;
    unsigned short first;   //起始盘块号，由于我们只分配一个磁盘块给文件，这个是比较重要的数据
    unsigned long length;   //文件长度
    char free;   //是否已分配
}fcb;

typedef struct FAT{
    unsigned short id; //有Free和End两种类型
}fat;

typedef struct userOpen{
    char fileName[8];
    char exName[3];
    unsigned char attribute;
    unsigned short time;
    unsigned short date;
    unsigned short first;
    unsigned long length;
    char dir[80]; // 记录目录
    int count; //读写指针，我没有用到
    char fcbState; //0未修改，1已修改
    char toOpenfile; //0空闲，1占用
}userOpen;

typedef struct Block0{
    char information[200]; //描述信息
    unsigned short root; //根目录起始盘块号
    unsigned char* startBlock; //描述信息
}block0;

unsigned char* myVhard; //磁盘首地址
userOpen openFileList[maxOpenfile]; //用户打开文件表
int curdir; //当前目录fd
char currentDir[80]; //当前目录路径
unsigned char* pstart; //数据区起始地址

time_t now ;
struct tm tm_now ; //获得日期时间

void startSys();  //系统初始化
void myFormat(); //磁盘格式化
void my_cd(char* dirname); //cd命令调用
void my_mkdir(char* dirname); //mkdir命令调用
void my_rmdir(char* dirname); //rmdir命令调用
void my_ls(); //ls命令调用
void my_create(char* filename); //create命令调用
void my_rm(char* filename); //rm命令调用
int  my_open(char* filename); //open命令调用
void my_write(int type); //write命令调用
void my_read(); //read命令调用
void my_close(); //close命令调用
void my_exit(); //exit命令调用

int getEmptyBlock(); // 得到一个
int getEmptyList();	 //
fcb* find_dir(fcb* dir,char* dirname); //在dir目录中找dirname文件,有返回他的fcb地址，无返回NULL

int main(){
    time(&now) ;
    localtime_r(&tm_now,&now) ; // 得到时间，不重要

    startSys(); //系统初始化
    while(1){
        printf("%s :",currentDir);  //进入命令行
        char cmd[256];
        scanf("%s",cmd);  //输入命令
        // 依次比对，调用命令函数
        if(strcmp(cmd,"cd")==0){
            char dirname[80];
            scanf("%s",dirname);
            my_cd(dirname);
        }
        else if(strcmp(cmd,"ls")==0){
            my_ls();
        }
        else if(strcmp(cmd,"mkdir")==0){
            char dirname[80];
            scanf("%s",dirname);
            my_mkdir(dirname);
        }
        else if(strcmp(cmd,"rmdir")==0){
            char dirname[80];
            scanf("%s",dirname);
            my_rmdir(dirname);
        }
        else if(strcmp(cmd,"create")==0){
            char filename[80];
            scanf("%s",filename);
            my_create(filename);
        }
        else if(strcmp(cmd,"rm")==0){
        	char filename[80];
            scanf("%s",filename);
            my_rm(filename);
        }
        else if(strcmp(cmd,"open")==0){
            char filename[80];
            scanf("%s",filename);
            if(my_open(filename)!=-1){  //进入文件打开目录
                while(1){
                	printf("%s :",currentDir);
                	char cmd[8];
                	scanf("%s",cmd);  //输入文件操作命令依次比对
                	if(strcmp(cmd,"read")==0)
                		my_read();
               		else if(strcmp(cmd,"write")==0){
               			printf("type:0 jieduan\t 1 fugai\t 2 zuijia \n");
               			int type;
               			scanf("%d",&type);
               		    my_write(type);
                	}
                	else if(strcmp(cmd,"close")==0){
                		my_close();
                		break;
                	}
                	else
                		printf("error: wrong command\n");
                }
            }
            else
            	printf("error: open failed\n");
        }
        else if(strcmp(cmd,"exit")==0){
        	my_exit();
        	break;
        }
        else
        	printf("error: wrong command\n");
    }
    return 0;
}

void startSys(){

    myVhard=(char*)malloc(Size); //申请分配内存空间
    FILE *file=fopen("FATsys.txt","r"); // 打开存放磁盘数据的文件
    if(file!=NULL){
    	char buffer[Size];  //缓冲区
    	fread(buffer,Size,1,file); //将磁盘数据读入缓冲区中
    	memcpy(myVhard,buffer,Size); //将缓冲区数据覆盖到申请的内存空间中
    }
    else{ //如果没有文件，就进行创建
		FILE *file=fopen("FATsys.txt","w");
		myFormat(); //调用format进行格式化
		fwrite(myVhard,Size,1,file); //格式化完成将数据写回文件
		fclose(file);
    }
    // 进入系统设置当前目录为根目录
    fcb* root=(fcb*)(myVhard+5*blockSize); //得到根目录fcb地址
    memcpy(openFileList,root,sizeof(fcb)); //将根目录fcb拷贝到用户文件打开表的第0项
    strcpy(openFileList[0].dir,"/"); //设置当前文件路径
    openFileList[0].toOpenfile=1; //置1，表明0项已被占用
    curdir=0; //设置为当前目录
    strcpy(currentDir,"/"); //设置当前路径
    pstart=(char*)root; // 数据区起始地址即根目录起始地址

}

void myFormat(){

    block0* block=(block0*)myVhard; //引导快地址
    strcpy(block->information,"sixGroupFATsys_1024_1024000"); //系统信息
    block->root=5; //根目录盘块号
    block->startBlock=myVhard+5*blockSize; //数据区起始地址

    fat* fat1=(fat*)(myVhard+1*blockSize); //fat1表起始地址
    int i;
    for(i=0;i<6;i++)
		(fat1+i)->id=End; //前面六个盘块已被占用
    for(i=6;i<1000;i++)
		(fat1+i)->id=Free; //未占用盘块置零

    fat* fat2=(fat*)(myVhard+3*blockSize); //fat2表起始地址
    memcpy(fat2,fat1,2*blockSize); // fat2表备份

    fcb* root=(fcb*)(myVhard+5*blockSize); //根目录fcb地址
    strcpy(root->fileName,"/"); //设置文件名
    strcpy(root->exName,"di"); // 设置扩展名
    root->attribute=0; //表明是目录
    root->first=5;  // 起始盘块
    root->length=2*sizeof(fcb); // 长度，因为初始时有/和..两个目录，所以长度是两个fcb
    root->free=1; //已分配
    root->time=tm_now.tm_mday; //设置时间
    root->date=tm_now.tm_mon;

    fcb* fatherDir=root+1;  //设置父目录
    memcpy(fatherDir,root,sizeof(fcb)); //由于是根目录，父目录即他自身
    strcpy(fatherDir->fileName,".."); //只需更改文件名
}

void my_cd(char* dirname){
    //由于cd命令会更改当前目录，所以判断当前目录是否改过，如果改过更新fcb
    if(openFileList[curdir].fcbState==1){
        fcb* f;
        if(curdir==0)
            f=(fcb*)pstart; //根目录fcb地址
        else{
            f=(fcb*)(myVhard+openFileList[curdir-1].first*blockSize);// 父目录的盘块起始地址
            for(;strcmp(f->fileName,openFileList[curdir].fileName)!=0;f++);//比对遍历
        }
        // 对比用户打开表和fcb，其实只有length会发生变化，只需更新length
        f->length=openFileList[curdir].length;

    }
  	// 返回上一级目录
    if(strcmp(dirname,"..")==0){
    	if(curdir==0)
    	    return; //根目录直接返回
    	else{
    	    openFileList[curdir].toOpenfile=0;
    	    curdir--; //当前目录号减1
    	    strcpy(currentDir,openFileList[curdir].dir); //更新当前路径
    	}
    }
    else{

    	if(curdir==0&&strcmp(dirname,"/")==0)
    		return; // "cd /" 特殊情况直接返回
        else{
        	userOpen* dir=&openFileList[curdir];
        	fcb* destDir=find_dir((fcb*)dir,dirname);// 在当前目录下查找
    		if(destDir==NULL)
    			printf("error: dirname not exist\n");
    		else if(destDir->attribute==1)  //如果是文件
    			printf("error: the dirname is file\n");
    		else if(destDir->attribute==0){
    			int num=getEmptyList(); //得到一个空白用户文件打开表号
    			if(num==-1)
    				printf("error: no empty openList\n");
    			else{
                        // 更新当前目录
    			       openFileList[num].toOpenfile=1;
    			       memcpy(openFileList+num,destDir,sizeof(fcb));
    			       strcpy(openFileList[num].dir,openFileList[curdir].dir);
    			       strcat(openFileList[num].dir,openFileList[num].fileName);
    			       strcat(openFileList[num].dir,"/");
    			       openFileList[num].fcbState=0;
    			       curdir=num;
    			       strcpy(currentDir,openFileList[curdir].dir);
    			}
    		}
        }
    }
}

void my_ls(){
    userOpen* dir=&openFileList[curdir];
    if(dir->attribute==1){ //如果是文件
	printf("error: file cannot use this command\n");
    }
    else if(dir->attribute==0){
	int i;
	fcb* f=(fcb*)(myVhard+dir->first*blockSize);//当前目录盘块起始地址
	for(i=0;i<dir->length/sizeof(fcb);i++)  //遍历打印
	    printf("%s (%s) \t",(f+i)->fileName,(f+i)->exName);
	printf("\n");
    }
}

void my_mkdir(char* dirname){
    userOpen* dir=&openFileList[curdir];
    if(find_dir((fcb*)dir,dirname)!=NULL) //遍历查找是否重名
    	printf("error: dirname is existed\n");
    else if(blockSize<(dir->length+sizeof(fcb))) //目录盘块是否有空余空间
		printf("error: curdir is full\n");
    else if(getEmptyBlock()==-1) //创建目录要分配盘块，看看是否有空闲盘块
    	printf("error: the disk is full\n");
    else{
        int blocknum=getEmptyBlock();
        fat* fat1=(fat*)(myVhard+1*blockSize);
        fat1[blocknum].id=End; // 分配一个空闲盘块
        //在父目录中写入fcb
	   fcb* mkdir=(fcb*)(myVhard+dir->first*blockSize+dir->length); //写入起始地址
        strcpy(mkdir->fileName,dirname);
        strcpy(mkdir->exName,"di");
        mkdir->attribute=0;
        mkdir->first=blocknum;
        mkdir->length=sizeof(fcb);
        mkdir->free=1;
	    mkdir->time=tm_now.tm_mday;
        mkdir->date=tm_now.tm_mon;

		dir->length+=sizeof(fcb); //父目录长度加一个fcb
		dir->fcbState=1; //修改位置1
		// 设置..目录
		fcb* fatherDir=(fcb*)(myVhard+blocknum*blockSize);
		memcpy(fatherDir,dir,sizeof(fcb));
		strcpy(fatherDir->fileName,"..");
		fatherDir->free=1;
   }
}

void my_rmdir(char* dirname){
    userOpen* dir=&openFileList[curdir];
    fcb* destDir=find_dir((fcb*)dir,dirname);//父目录查找
    if(destDir==NULL)
        printf("error: the dir not exist\n");
    else if(destDir->attribute==1)
        printf("error: the file cannot use command\n");
    else{
        int num=destDir->length/sizeof(fcb);
        if(num>1)  //如果是非空目录
            printf("error: the dir not empty\n");
        else{
            fat* fat1=(fat*)(myVhard+1*blockSize);
            fat1[destDir->first].id=0; //回收目录盘块
            openFileList[curdir].length-=sizeof(fcb); //父目录长度减一个fcb
            openFileList[curdir].fcbState=1;
        }

    }
}

void my_create(char* filename){
    userOpen* dir=&openFileList[curdir];
    if(find_dir((fcb*)dir,filename)!=NULL)  // 判断是否重名
    	printf("error: filename is existed\n");
    else if(blockSize<(dir->length+sizeof(fcb))) //当前目录盘块是否有空余
	printf("error: curdir is full\n");
    else{
         // 下面参考mkdir，不同的是create不进行盘块分配，写入该文件时进行分配
		fcb* fl=(fcb*)(myVhard+dir->first*blockSize+dir->length);
        strcpy(fl->fileName,filename);
        strcpy(fl->exName,"fl");
        fl->attribute=1;
        fl->first=End;
        fl->length=0;
		fl->time=tm_now.tm_mday;
        fl->date=tm_now.tm_mon;
		dir->length+=sizeof(fcb);
		dir->fcbState=1;
   }
}

void my_rm(char* filename){
	userOpen* dir=&openFileList[curdir];
	fcb* fl=find_dir((fcb*)dir,filename);
    if(fl==NULL)
    	printf("error: filename not exist\n");
    else if(fl->attribute==0)
    	printf("error: the file is dir\n");
    else{
    	fat* fat1=(fat*)(myVhard+1*blockSize);
    	int bnum=fl->first;
        // 回收盘块
    	while(bnum!=End){
    		int a=bnum;
    		bnum=fat1[bnum].id;
    		fat1[a].id=0;
    	}
    	dir->length-=sizeof(fcb);
		dir->fcbState=1;
    }
}

int  my_open(char* filename){
	 int ret=-1;
	 userOpen* dir=&openFileList[curdir];
     fcb* destFile=find_dir((fcb*)dir,filename);
     if(destFile==NULL)
    	printf("error: filename not exist\n");
     else if(destFile->attribute==0)
    	printf("error: the filename is dir\n");
     else if(destFile->attribute==1){
    	int num=getEmptyList();
    	if(num==-1)
    		printf("error: no empty openList\n");
    	else{
             // 加载到用户打开文件表 ,参考cd
    		openFileList[num].toOpenfile=1;
    		memcpy(openFileList+num,destFile,sizeof(fcb));
    		strcpy(openFileList[num].dir,openFileList[curdir].dir);
    		strcat(openFileList[num].dir,openFileList[num].fileName);
    	    strcat(openFileList[num].dir,"/");
    	    openFileList[num].fcbState=0;
    	    curdir=num;
    		strcpy(currentDir,openFileList[curdir].dir);
    		ret=curdir;
    	}
    }
    return ret;
}
void my_write(int type){
	fat* fat1=(fat*)(myVhard+1*blockSize);
    // 判断是否分配了盘块
	if(openFileList[curdir].first==End){
		int blocknum=getEmptyBlock();   //分配盘块
        fat1[blocknum].id=End;
        openFileList[curdir].first=blocknum;
        openFileList[curdir].fcbState=1;
	}
	char* pwrite=myVhard+openFileList[curdir].first*blockSize;
	if(type==0){
		char buffer[10240];  // 设置写缓冲区
		printf("please write(type0):\n");
		scanf("%s",buffer);
		int writesize=strlen(buffer)*sizeof(char); //计算待写入大小

		int bnum=openFileList[curdir].first; // 起始盘块号
		do{
			char* pblock=myVhard+bnum*blockSize;
			memset(pblock,0,blockSize);
			bnum=fat1[bnum].id;
		}while(bnum!=End);	//截断写，先进行清空
		openFileList[curdir].length=0;
		bnum=openFileList[curdir].first; // 起始写入盘块号
		int i=0; //计算写入次数，以便得到缓冲区偏移量
		int preblock; // 记录前一个盘块号
		do{
          	// 如果需要盘块，进行分配
			if(bnum==End){
				bnum=getEmptyBlock();
				if(bnum==-1){
					printf("error: no empty block\n");
					break;
				}
				fat1[preblock].id=bnum;
				fat1[bnum].id=End;
			}
			char* pwrite=myVhard+bnum*blockSize; //每次写入的起始指针

			// 如果待写入大小大于一个盘块大小，本一次写入一个盘块大小
			if(writesize>blockSize){
				memcpy(pwrite,buffer+i*blockSize,blockSize);
				openFileList[curdir].length+=blockSize;
			    i++;
			}
			else{  // 如果小于，写入待写入大小
				memcpy(pwrite,buffer+i*blockSize,writesize);
				openFileList[curdir].length+=writesize;
			}
			writesize-=blockSize; //按盘块写入的，每次减一个盘块大小
			preblock=bnum; // 记录前一个盘块，以便更新fat表
			bnum=fat1[bnum].id; //下一个盘块
		}while(writesize>0);
		openFileList[curdir].fcbState=1;
	}
	else if(type==1){ //与截断写类似，不过不需要清空，并且需要比较覆盖长度和原长度的大小
		char buffer[10240];
		printf("please write(type1):\n");
		scanf("%s",buffer);
		int writesize=strlen(buffer)*sizeof(char);
		int bnum=openFileList[curdir].first;
		bnum=openFileList[curdir].first;
		int i=0;
		int preblock;
		int newlength=0;
		do{
			if(bnum==End){
				bnum=getEmptyBlock();
				if(bnum==-1){
					printf("error: no empty block\n");
					break;
				}
				fat1[preblock].id=bnum;
				fat1[bnum].id=End;
			}
			char* pwrite=myVhard+bnum*blockSize;
			if(writesize>blockSize){
				memcpy(pwrite,buffer+i*blockSize,blockSize);
				newlength+=blockSize;
			    i++;
			}
			else{
				memcpy(pwrite,buffer+i*blockSize,writesize);
				newlength+=writesize;
			}
			writesize-=blockSize;
			preblock=bnum;
			bnum=fat1[bnum].id;
		}while(writesize>0);
		openFileList[curdir].fcbState=1;
		if(newlength>openFileList[curdir].length)
			openFileList[curdir].length=newlength;
	}
	else if(type==2){ // 追加写要复杂一些
		char buffer[10240];
		printf("please write(type2):\n");
		scanf("%s",buffer);
		int writesize=strlen(buffer)*sizeof(char);
		int lastblock=openFileList[curdir].first;
		for(;fat1[lastblock].id!=End;lastblock=fat1[lastblock].id); // 得到最后一个盘块号
		 //判断文件盘块是否写满
      	if(openFileList[curdir].length%blockSize==0){//满了需要申请空闲盘块
			int preblock=lastblock;
			int bnum=End;
			int i=0;
			do{
				bnum=getEmptyBlock(); // 申请盘块
				if(bnum==-1){
					printf("error: no empty block\n");
					break;
				}
				fat1[preblock].id=bnum;
				fat1[bnum].id=End;
				char* pwrite=myVhard+bnum*blockSize; //写指针

				if(writesize>blockSize){
					memcpy(pwrite,buffer+i*blockSize,blockSize);
					openFileList[curdir].length+=blockSize;
			   		i++;
				}
				else{
					memcpy(pwrite,buffer+i*blockSize,writesize);
					openFileList[curdir].length+=writesize;
				}
				writesize-=blockSize;
				preblock=bnum;
				bnum=fat1[bnum].id;
			}while(writesize>0);
		}
		else{//未满说明盘块还有剩余空间
			int bnum=lastblock;
			int i=0;
			int preblock;
			int freeSize=blockSize-openFileList[curdir].length%blockSize;//计算剩余空间
			do{
				if(bnum==End){
					bnum=getEmptyBlock();
					if(bnum==-1){
						printf("error: no empty block\n");
						break;
					}
					fat1[preblock].id=bnum;
					fat1[bnum].id=End;
				}
				char* pwrite;
				if(freeSize<blockSize) // 计算写指针位置
					pwrite=myVhard+bnum*blockSize+openFileList[curdir].length%blockSize;
				else
					pwrite=myVhard+bnum*blockSize;

				if(writesize>freeSize){
					memcpy(pwrite,buffer+i*freeSize,freeSize);
					openFileList[curdir].length+=freeSize;
			    	i++;
				}
				else{
					memcpy(pwrite,buffer+i*freeSize,writesize);
					openFileList[curdir].length+=writesize;
				}
				writesize-=freeSize;
				preblock=bnum;
				bnum=fat1[bnum].id;
				freeSize=blockSize;
			}while(writesize>0);
		}

		openFileList[curdir].fcbState=1;
	}
}
void my_read(){
	if(openFileList[curdir].first==End)
		printf("error: file is empty\n");
	else{
		char buffer[1024]={0};
		int bnum=openFileList[curdir].first;
		int i=0;
		fat* fat1=(fat*)(myVhard+1*blockSize);
		while(bnum!=End){
			char* pread=myVhard+bnum*blockSize;
			memcpy(buffer,pread,blockSize);//每次读一个盘块
			printf("read::\n");
			printf("%s\n",buffer);
			bnum=fat1[bnum].id;
	    }
	}
}
void my_close(){
   //关闭文件时，判断文件是否被修改，如果被修改，需要写回fcb中
	if(openFileList[curdir].fcbState==1){
        fcb* f;
        if(curdir==0)
            f=(fcb*)pstart;
        else{
            f=(fcb*)(myVhard+openFileList[curdir-1].first*blockSize);
            for(;strcmp(f->fileName,openFileList[curdir].fileName)!=0;f++);
        }
        f->first=openFileList[curdir].first;
        f->length=openFileList[curdir].length;
	}
	openFileList[curdir].toOpenfile=0;
    curdir--;
    strcpy(currentDir,openFileList[curdir].dir);
}

void my_exit(){
  	// 退出系统，备份fat2，更新根目录fcb,写入系统文件，以便再次打开时可以读取以前的文件
	 fat* fat1=(fat*)(myVhard+1*blockSize);
	 fat* fat2=(fat*)(myVhard+3*blockSize);
     memcpy(fat2,fat1,2*blockSize);
	 if(openFileList[0].fcbState==1){
        fcb* f=(fcb*)pstart;
    	f->length=openFileList[0].length;
    }
	FILE *file=fopen("FATsys.txt","w");
	fwrite(myVhard,Size,1,file);
	fclose(file);
}
int getEmptyBlock(){
    fat* fat1=(fat*)(myVhard+1*blockSize);
    int i;
    for(i=0;i<1000;i++)
	if(fat1[i].id==0)
	    return i;
    return -1;
}
fcb* find_dir(fcb* dir,char* dirname){
    if(dir->attribute==0){
	int i;
	fcb* f=(fcb*)(myVhard+dir->first*blockSize);
	for(i=0;i<dir->length/sizeof(fcb);i++)
		if(strcmp(f[i].fileName,dirname)==0)
			return f+i;
    }
    return NULL;
}

int getEmptyList(){
    int i;
    for(i=0;i<10;i++)
        if(openFileList[i].toOpenfile==0)
        	return i;
    return -1;
}

author: YaoGuangMing 2022-HDU

转载请标明出处！
